35mm 150OHM Telephone Speaker for Mobile Phone Speaker
35mm 150OHM Telephone Speaker for Mobile Phone Speaker
35mm 150OHM Telephone Speaker for Mobile Phone Speaker
35mm 150OHM Telephone Speaker for Mobile Phone Speaker
35mm 150OHM Telephone Speaker for Mobile Phone Speaker

35mm 150OHM Telephone Speaker for Mobile Phone Speaker

Model NO.
DR-35RH
Price:
USD 0.20-1.00 / pieces
Delivery:
FOB
Minimum order quantity:
10000 pieces
Supply Ability:
500000 pieces / Month
Country of Origin:
FOB shanghai
Stock Time:
35days after 30% business payment Days
Quantity:
Product Description

35mm 150OHM Telephone Speaker  for Mobile Phone Speaker


RDR-35RH



Specification for Cord Phone Receiver:





1. Scope



This specification is applied to the dynamic receiver which is used all of the electrical acoustic product.

--compact, clear sound

--applications: cord phone



2. General



2.1 Out-Diameter:  φ35.0mm

   2.2 Height      :   16.0mm

   2.3 Weight      :   30.2gr.

   2.4 Operating Conditions:

               -10~+55℃, 10%~93%(RH)

   2.5 Store Temperature range:

               -20~+65℃ without loss of function

   2.6 Test condition: +20±2℃, 60%~70%RH, 860~1060hpa









3. Electrical and Acoustic Characteristics.



3.1 Impedance:         150Ω±15%(at 1Vrms 1KHz)

3.2 Sound Pressure Level: 103±3dB@1KHz (0dB SPL=20μPa)

Input voltage: 100mV (Sine wave) measured with IEC318 coupler.

3.3 Frequency Range:   200Hz~6KHz

3.4 Input Power:       Rated 10mW,Max 30mW

3.5 Distortion:         <5% Max. at 300Hz~3400HZ with 105dB

3.6 Magnetic Field Intensity:  MF intensity axial:≥-22dB(1KHz 0dB=1A/m,with 315mV)

                           MF intensity radial:≥-27dB(1KHz 0dB=1A/m, with 315mV)

3.7 Buzz and Rattle:    Should not be audible buzzes, rattle when feeding the 10mW sine wave signal

 swept at frequency range.





4.Measurement Block Diagram

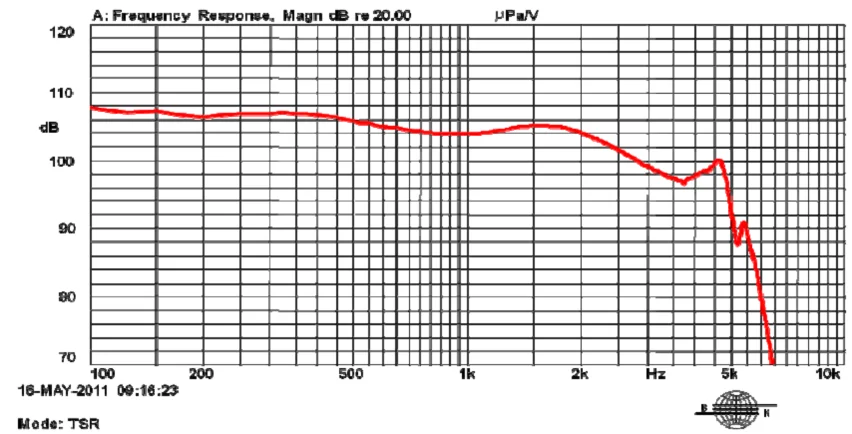

5.Frequency Response Curve










6.Ear piece








Dimensions








Packaging & Shipping


Produce Room




We have more than 200 employees. Production Line improve the working efficiency, reduce the situation of quality.





Company Information


      Jiaxing Jinlida Electron Co., Ltd, establish 2000,The central joint of Hangzhou,Shanghai and Ningbo located place have convenient traffic and good transportation.
We have been the 14years experience of Audio products & Telecom parts on the design & produce . JLD Cable, as the branch production line of Jiaxing Jinlida Electron Co.,Ltd, it was brought since 2014 as the Market & Customer's requirment, advanced & high qualified automatic equipment that valued more than 2million yuan warranty the customer's required product quality and save human resource.
       For our this branch product line, not only audio cable include power/battery cable, acoustic cable,RCA cable, Amplifier kits, but also video cable such as camera moniton even signal transmission of network installation cable, both of them will be designed and supplied by us.
      Our professional team welcome every customer visit our factory and also look forward have a good & longer business relations with you! We believe your choice will no regret within our honest & credit business!




  • Add:Yuantong Development Zone Haiyan Zhejiang,China
  • Tel:0086-573-86882201
  • Fax:0086-573-86881688
  • Website:http://www.jldaudio.com,http://www.jxjld.com, http://www.jldcable.com


Product Show Room


Our show room have most of our products, such as PA Speaker, PA Speaker Box, Car Subwoofer, All types cables and Spare parts.





FAQ

(Maybe you will have questions like following)

A:Can you send me pricelist?

B:Sorry,we don't have pricelist,because we always produce goods according to customers' requirments,so price volatility is relatively large.



A:What's payment terms you accept?

B:T/T or L/C.If you choose T/T,payment terms should be 30% T/T before production as deposit,the balance 70% by T/T will be made againsr the copy of B/L.



A:Can you supply sample for me?Are samples free?

B:Of course,we can supply sample for free.But you need pay for the freight.



A: What's your MOQ?

B:MOQ is 100pcs.



A:What's your advantage?

B:1.Located in Zhejiang province,Shanghai port and Ningbo port are nearby.Close to most spare parts suppliers

   2.The wooden box,T yoke,pole plate as spare parts are made by ourselves,we can control both the quality and delivery        time on      them

   3.We are manufacturer with export right,offer clients factory prices

   4.OEM and ODM are both ok

   5.Steady quality and good after sales service



A:Packing and delivery time?

B:We can pack with your advices.About delivery, 3-5 days for samples; 30-45 days for order.



A:How about shipping?

B:FOB shanghai.





Any other question,please contace Jessica.

  • Brand Name:OEM
  • Model Number:DR-35RH
  • Type:Passive
  • Use:Mobile Phone; Computer; Portable Audio Player; Karaoke Player
  • Channels:3 (2.1)
  • Special Feature:Mini
  • Place of Origin:CN;ZHE
